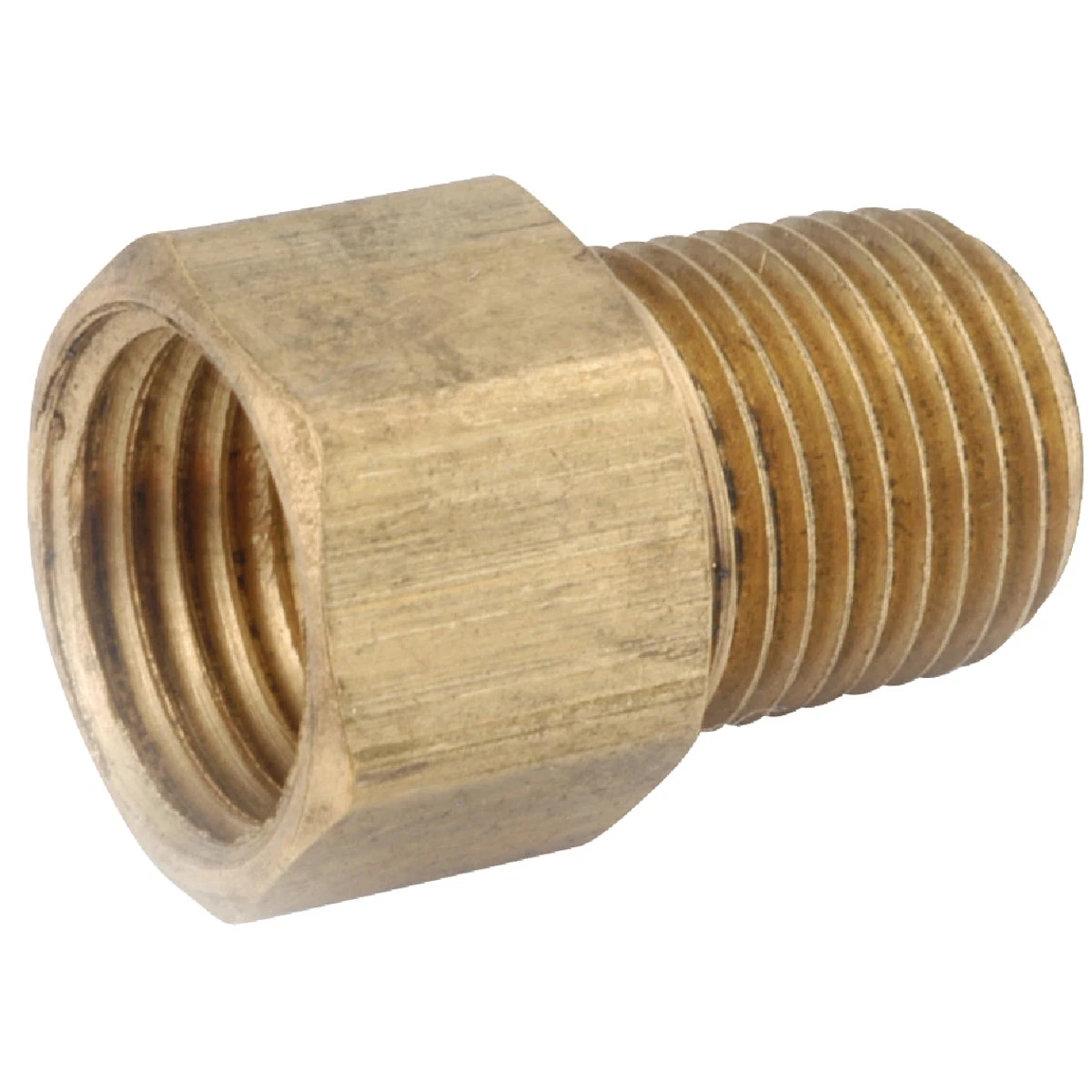

Brass Threaded Inverted Flare Connector, 5/16 X 1/4 In.

Overview:
This Anderson Metals Brass Inverted Flare Connector is designed for reliable connections in plumbing applications. With a size of 5/16 inch outer diameter and 1/4 inch male pipe, this connector is perfect for various tubing materials including copper, brass, aluminum, and steel. Its robust construction ensures durability and longevity, making it an essential component for your plumbing needs.

Key Features:
- Fitting Size 1: 5/16 In. Outer Diameter
- Fitting Size 2: 1/4 In.
- Connection Type 1: Female Inverted Flare
- Connection Type 2: Male Iron Pipe (MIP)
- Material: High-Quality Brass
- Pressure Rating: Up to 1200 psi
- Maximum Working Temperature: 73 Degrees Fahrenheit
- Two-Piece Construction: Nut and Body
- Shorter Overall Length for Limited Space Applications
- Seats and Threads are Recessed for Protection
- Fair Vibration Resistance and Resists Mechanical Pullout
- Easy to Disassemble and Reassemble Without Affecting Seal
- Primary Uses: Suitable for Liquids, Gases, and Hydraulic Brake Systems
- Temperature Range: Negative 65 Degrees to Plus 250 Degrees Fahrenheit

Assembly Instructions:
1. Cut a smooth, square end on the tubing.
2. Slide the nut onto the tube with threads facing the end.
3. Flare the end of the tube.
4. Thread the nut onto the body until snug, then turn an additional 1/6th turn.

This connector is ideal for both professional plumbers and DIY enthusiasts looking to create secure and leak-free connections in their plumbing systems. Whether you are working on a new installation or repairing existing plumbing, this brass inverted flare connector will meet your needs with ease.
